Embedding & Vector Retrieval

How Embedding Models Work

Embedding models convert text into high-dimensional vectors so that semantically similar texts are close together in vector space.

"I like eating apples"   →  [0.12, -0.34, 0.56, ..., 0.78]  (1024 dimensions)
"I love eating apples"   →  [0.11, -0.33, 0.55, ..., 0.79]  ← very close
"Car repair guide"       →  [-0.78, 0.45, -0.23, ..., 0.01] ← very far

Embedding model training typically includes a Contrastive Learning phase: the input consists of many text pairs labeled as relevant/irrelevant, and the training objective is to maximize the vector similarity of relevant texts and minimize that of irrelevant ones.

# Calculate cosine similarity between two text vectors
import numpy as np

def cosine_similarity(a, b):
    return np.dot(a, b) / (np.linalg.norm(a) * np.linalg.norm(b))

# Example
query_vec = embedding_model.encode("How do I apply for annual leave?")
doc_vec = embedding_model.encode("Employee annual leave application procedure")

similarity = cosine_similarity(query_vec, doc_vec)
print(f"Similarity: {similarity:.4f}")  # 0.92 — highly relevant

Vector Database Selection

Vector databases are the core infrastructure of RAG systems. Choosing requires trade-offs:

# Example using Chroma (lightweight local vector DB)
import chromadb
from chromadb.utils import embedding_functions

client = chromadb.PersistentClient(path="./chroma_db")
collection = client.create_collection(
    name="company_docs",
    embedding_function=embedding_functions.OpenAIEmbeddingFunction(
        api_key="your-api-key",
        model_name="text-embedding-3-small"
    )
)

# Add documents
collection.add(
    documents=["Employee annual leave application procedure...", "Travel reimbursement standards..."],
    metadatas=[{"source": "hr_policy.pdf"}, {"source": "finance_policy.pdf"}],
    ids=["doc_1", "doc_2"]
)

# Retrieve
results = collection.query(
    query_texts=["How do I apply for annual leave?"],
    n_results=3
)

Document Chunking Strategies

The Fundamental Tension of Chunking

The retrieval effectiveness of a RAG system heavily depends on document chunking quality. The core tension is:

Chunks too large → too much noise introduced during retrieval, model attention is diluted
Chunks too small → key information may be truncated, context is lost

There is no single “universally optimal” chunking strategy. You need to choose based on document type, retrieval scenario, and model capability.

Five Mainstream Chunking Methods

Token Chunking

Splits by a fixed number of tokens. Suitable for scenarios requiring precise token consumption control.

from llama_index.core.node_parser import TokenTextSplitter

splitter = TokenTextSplitter(
    chunk_size=256,     # tokens per chunk
    chunk_overlap=30    # overlap tokens between adjacent chunks
)

nodes = splitter.get_nodes_from_documents(documents)

Advantages: Precisely controls context size, suitable for models with smaller context windows. Disadvantages: May cut off mid-sentence, breaking semantic integrity.

Sentence Chunking

A splitting method that preserves sentence integrity; the default choice for most scenarios.

from llama_index.core.node_parser import SentenceSplitter

splitter = SentenceSplitter(
    chunk_size=512,
    chunk_overlap=50
)

Advantages: Maintains the semantic unit integrity of natural language. Disadvantages: Unaware of document structure, may split related paragraphs into different chunks.

Sentence Window Chunking

Uses different granularities for indexing and retrieval: small granularity for indexing for precise matching, and when returning retrieval results, includes adjacent context windows.

from llama_index.core.node_parser import SentenceWindowNodeParser

parser = SentenceWindowNodeParser(
    window_size=3,          # expand by 3 adjacent sentences during retrieval
    window_metadata_key="window",
    original_text_metadata_key="original"
)

Core advantage: Balances retrieval precision and context completeness.

Semantic Chunking

Adaptively selects split points based on semantic relevance, preserving the semantic continuity of documents.

from llama_index.core.node_parser import SemanticSplitterNodeParser

splitter = SemanticSplitterNodeParser(
    buffer_size=1,
    breakpoint_percentile_threshold=95,  # split when similarity falls below this threshold
    embed_model=embed_model
)

Suitable scenarios: Long documents with good logical structure and specialized content.

Markdown Chunking

Specifically optimized for Markdown structured documents, splitting by heading hierarchy.

from llama_index.core.node_parser import MarkdownNodeParser

parser = MarkdownNodeParser()
# Automatically recognizes #, ##, ### heading levels, splits at each heading paragraph

Best practice: Convert documents from PDF/Word to Markdown before chunking, leveraging heading structure to improve retrieval accuracy.

Chunking Strategy Selection Guide

Retrieval-Augmented Generation Pipeline

The Two-Phase RAG Architecture

RAG (Retrieval-Augmented Generation) is the core architecture for solving the “knowledge deficiency” problem of large models. It divides the process into two phases:

Phase One: Build Index

1. Parse Documents: Parse formats like PDF, Word, Markdown into plain text
2. Chunk Text: Split documents into paragraphs according to the chosen strategy
3. Embed Vectors: Convert each chunk into a vector using an Embedding model
4. Store Index: Store vectors in a vector database and build an index

Phase Two: Retrieve and Generate

┌──────────┐    ┌──────────┐    ┌──────────┐    ┌──────────┐
│  Query    │ → │  Retrieve │ → │  Augment  │ → │  Generate │
│  User Q   │    │  Vectors  │    │  Prompt   │    │  Model    │
└──────────┘    └──────────┘    └──────────┘    └──────────┘

1. Receive Query: Accept the user’s question
2. Vector Retrieval: Vectorize the question and retrieve the most similar chunks from the vector database
3. Prompt Assembly: Assemble retrieved knowledge chunks + original question + instructions into a complete prompt
4. Model Generation: The LLM generates an answer based on the augmented context

Complete RAG Pipeline Example

from openai import OpenAI
import numpy as np

client = OpenAI()

class SimpleRAG:
    def __init__(self, embed_model="text-embedding-3-small"):
        self.embed_model = embed_model
        self.documents = []      # store document texts
        self.embeddings = []     # store document vectors

    def add_documents(self, docs: list[str]):
        """Build index: vectorize and store documents"""
        for doc in docs:
            vec = self._embed(doc)
            self.documents.append(doc)
            self.embeddings.append(vec)

    def _embed(self, text: str) -> np.ndarray:
        resp = client.embeddings.create(
            model=self.embed_model,
            input=text
        )
        return np.array(resp.data[0].embedding)

    def retrieve(self, query: str, top_k: int = 3) -> list[str]:
        """Retrieve the most relevant document chunks"""
        query_vec = self._embed(query)
        similarities = [
            np.dot(query_vec, doc_vec) /
            (np.linalg.norm(query_vec) * np.linalg.norm(doc_vec))
            for doc_vec in self.embeddings
        ]
        top_indices = np.argsort(similarities)[-top_k:][::-1]
        return [self.documents[i] for i in top_indices]

    def query(self, question: str) -> str:
        """Complete RAG query"""
        contexts = self.retrieve(question)
        prompt = f"""Please answer the question based on the following reference information:

Reference Information:
{' '.join(contexts)}

Question: {question}

If the reference information is insufficient to answer the question, please state so explicitly."""

        resp = client.chat.completions.create(
            model="gpt-4",
            messages=[{"role": "user", "content": prompt}]
        )
        return resp.choices[0].message.content

Query Rewriting in Multi-Turn RAG Conversations

Implementing multi-turn conversation in a RAG scenario presents unique challenges. If the user’s second turn says “Who is his manager?”, retrieving directly with this sentence would completely fail — the system doesn’t know who “he” refers to.

Solution: Query Rewriting

def rewrite_query(conversation_history: list, current_query: str) -> str:
    """Use an LLM to rewrite a context-dependent question into a standalone question"""
    rewrite_prompt = f"""
    Based on the conversation history, rewrite the current question into a standalone question that does not depend on context.

    Conversation History:
    {format_history(conversation_history)}

    Current Question: {current_query}

    Rewritten Question:"""

    resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{"role": "user", "content": rewrite_prompt}],
        temperature=0.1
    )
    return resp.choices[0].message.content

# Example
# History: User asked "Where is Zhang San's desk?" Assistant replied "5th floor, Building A"
# Current: "Who is his manager?"
# Rewritten: "Who is Zhang San's manager?"

Advanced RAG Patterns

HyDE (Hypothetical Document Embeddings)

The core idea of HyDE: first have the model “fabricate” a hypothetical answer, then use that hypothetical answer for retrieval instead of the original question. The intuition is — the hypothetical answer is semantically closer to real documents than the question itself.

def hyde_retrieve(query: str, top_k: int = 3) -> list[str]:
    """Retrieve using the HyDE method"""
    # Step 1: Generate a hypothetical answer
    hyde_prompt = f"""
    Question: {query}
    Please write a passage that answers this question.
    Passage:"""

    hyde_resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{"role": "user", "content": hyde_prompt}]
    )
    hypothetical_doc = hyde_resp.choices[0].message.content

    # Step 2: Use the hypothetical answer for retrieval instead of the original question
    query_vec = embed(hypothetical_doc)
    results = vector_db.search(query_vec, top_k=top_k)
    return results

HyDE is particularly suitable for scenarios where the original query is very short but semantically complex, because the hypothetical answer can provide more semantic clues.

Re-Ranking

Initial vector retrieval (coarse ranking) is fast but has limited precision. A re-ranking model (fine ranking) can be introduced to perform a second sort on candidate chunks:

from sentence_transformers import CrossEncoder

reranker = CrossEncoder('BAAI/bge-reranker-v2-m3')

def rerank(query: str, candidates: list[str], top_k: int = 3):
    """Re-rank candidate chunks"""
    pairs = [(query, doc) for doc in candidates]
    scores = reranker.predict(pairs)

    # Sort by relevance score
    ranked = sorted(
        zip(candidates, scores),
        key=lambda x: x[1],
        reverse=True
    )
    return [doc for doc, _ in ranked[:top_k]]

Retrieval Strategy Optimization Panorama

RAG Document Preparation Strategy

The key to building a high-quality RAG system is document preparation. You need to understand the relationship between “intent space” and “knowledge space”:

Intent Space (what users may ask)    Knowledge Space (what the knowledge base covers)
     ┌─────────┐
     │ Overlap │ ← RAG can answer these
     └─────────┘
     ↑            ↑
  Uncovered        Unused
  intents →        knowledge →
  supplement       optimize
  knowledge        recall

Core principles:

• Before optimizing algorithms, first supplement missing knowledge
• Before improving recall, first improve document quality
• Continuously collect user intent, forming a closed loop of “data collection → knowledge updates → expert verification”

Function Calling Protocol

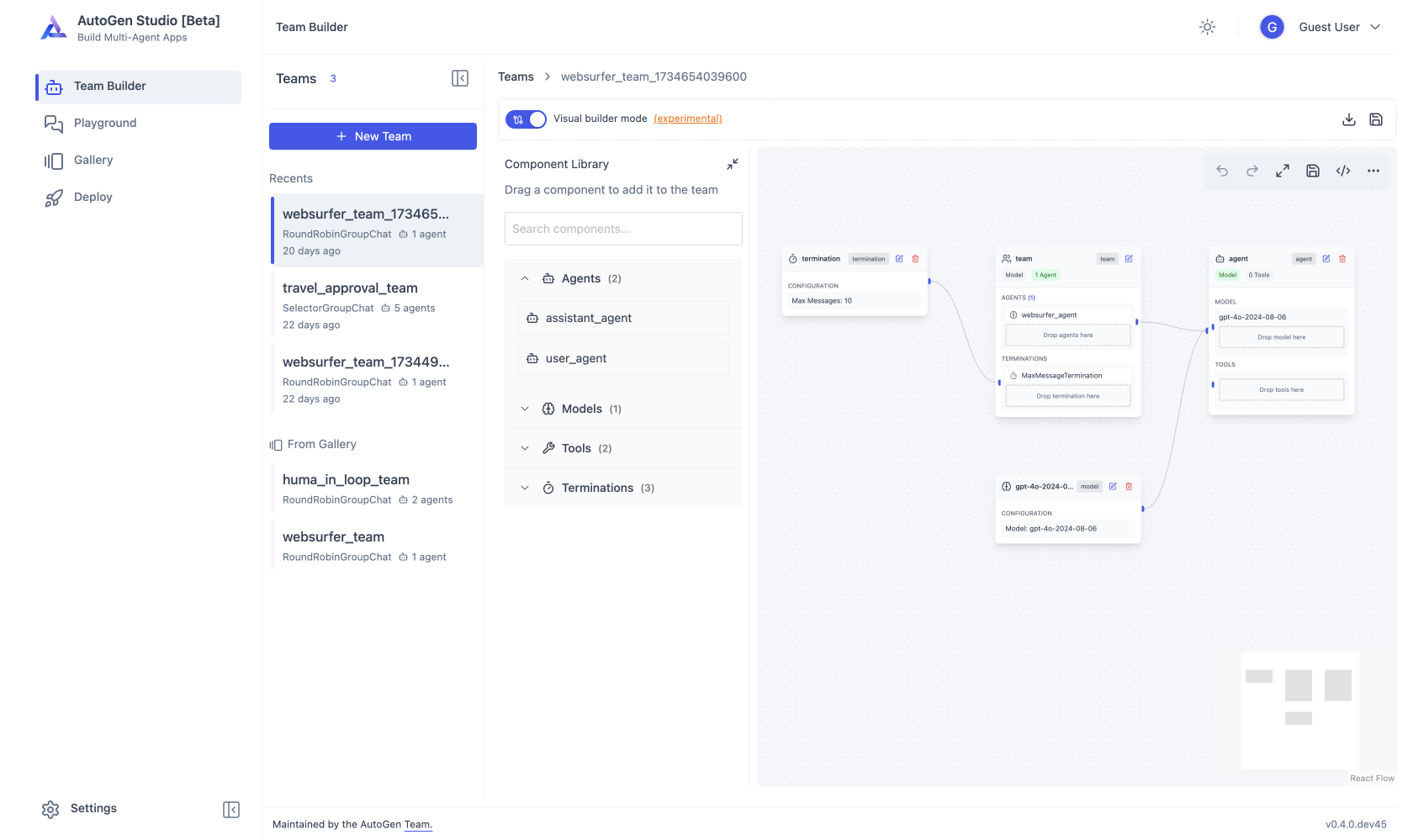

AutoGen Studio — Microsoft’s no-code multi-agent workflow builder — via microsoft/autogen

DSPy — program (not prompt) LLMs declaratively; used by Hermes’s self-evolution pipeline — via stanfordnlp/dspy

What is Function Calling

Function Calling (also called Tool Calling) is a standard capability provided by LLM APIs. It allows the model to output structured tool invocation instructions when needed, rather than plain text replies.

The workflow is as follows:

JSON Schema Tool Definition

# Define tool list
tools = [
    {
        "type": "function",
        "function": {
            "name": "search_knowledge_base",
            "description": "Search the company internal knowledge base for policy documents and operation guides",
            "parameters": {
                "type": "object",
                "properties": {
                    "query": {
                        "type": "string",
                        "description": "Search keywords or question"
                    },
                    "category": {
                        "type": "string",
                        "enum": ["hr", "it", "finance", "general"],
                        "description": "Knowledge category"
                    }
                },
                "required": ["query"]
            }
        }
    },
    {
        "type": "function",
        "function": {
            "name": "send_email",
            "description": "Send an email",
            "parameters": {
                "type": "object",
                "properties": {
                    "to": {
                        "type": "string",
                        "description": "Recipient email address"
                    },
                    "subject": {
                        "type": "string",
                        "description": "Email subject"
                    },
                    "body": {
                        "type": "string",
                        "description": "Email body"
                    }
                },
                "required": ["to", "subject", "body"]
            }
        }
    }
]

Complete Function Calling Loop

from openai import OpenAI
import json

client = OpenAI()

def execute_function_call(tool_call):
    """Execute a tool call and return the result"""
    func_name = tool_call.function.name
    args = json.loads(tool_call.function.arguments)

    if func_name == "search_knowledge_base":
        # actual search logic
        result = knowledge_base.search(args["query"])
        return json.dumps(result)
    elif func_name == "send_email":
        # actual email sending logic
        result = email_service.send(
            to=args["to"],
            subject=args["subject"],
            body=args["body"]
        )
        return json.dumps({"status": "sent" if result else "failed"})
    else:
        return json.dumps({"error": f"Unknown function: {func_name}"})

def chat_with_tools(user_message: str, messages: list = None):
    """Conversation with Function Calling support"""
    if messages is None:
        messages = [
            {"role": "system", "content": "You are an enterprise assistant that can search the knowledge base and send emails."}
        ]

    messages.append({"role": "user", "content": user_message})

    # First call: model decides whether to use tools
    response = client.chat.completions.create(
        model="gpt-4",
        messages=messages,
        tools=tools
    )

    assistant_msg = response.choices[0].message

    # If the model wants to call tools
    if assistant_msg.tool_calls:
        messages.append(assistant_msg)

        for tool_call in assistant_msg.tool_calls:
            # Execute the tool
            result = execute_function_call(tool_call)
            # Return the result to the model
            messages.append({
                "role": "tool",
                "tool_call_id": tool_call.id,
                "content": result
            })

        # Second call: model generates final response based on tool results
        final_response = client.chat.completions.create(
            model="gpt-4",
            messages=messages
        )
        return final_response.choices[0].message.content

    # If the model responds directly
    return assistant_msg.content

Tool Definition Best Practices

1. Descriptions must be precise: The model decides when to call a tool based on description; vague descriptions lead to incorrect invocations
2. Parameters should have constraints: Use enum, required, and type constraints to reduce parameter errors by the model
3. Functions should have a single responsibility: Don’t pack multiple operations into one function
4. Return structured results: Tool returns should be easy for the model to understand; JSON is recommended

# ❌ Poor tool description
{"name": "do_stuff", "description": "Perform an operation", "parameters": {...}}

# ✅ Precise tool description
{
    "name": "cancel_meeting",
    "description": "Cancel a specified meeting; requires a meeting ID and cancellation reason",
    "parameters": {
        "properties": {
            "meeting_id": {"type": "string", "description": "Unique identifier of the meeting"},
            "reason": {"type": "string", "description": "Cancellation reason, will be notified to all participants"}
        },
        "required": ["meeting_id"]
    }
}

The ReAct Reasoning-Action Loop

The Core Idea of ReAct

ReAct (Reasoning + Acting) is a pattern that allows the model to alternate between Thought and Action. It does not generate a final answer in one shot; instead, it solves problems through a cycle of “Think → Act → Observe → Think…”

A typical ReAct execution process:

User: "Look up Zhang San's department, then send an email to his manager"

Thought 1: I need to first find Zhang San's department information
Action 1: search_knowledge_base(query="Zhang San department")
Observation 1: "Zhang San belongs to the Teaching & Research Department, manager is Li Si ([email protected])"

Thought 2: Got the information; now I need to write an email to Li Si
Action 2: send_email(to="[email protected]", subject="Regarding Zhang San",
                      body="...")
Observation 2: {"status": "sent"}

Thought 3: Task complete
Final Answer: "Zhang San is in the Teaching & Research Department. I have sent an email to his manager Li Si."

Manually Implementing a ReAct Agent

class ReActAgent:
    def __init__(self, tools: dict, max_iterations: int = 10):
        self.tools = tools
        self.max_iterations = max_iterations

    def run(self, task: str) -> str:
        messages = [
            {"role": "system", "content": self._build_system_prompt()},
            {"role": "user", "content": task}
        ]

        for i in range(self.max_iterations):
            response = client.chat.completions.create(
                model="gpt-4",
                messages=messages,
                tools=self._format_tools()
            )

            msg = response.choices[0].message

            if msg.content and not msg.tool_calls:
                # Model gave a final answer
                return msg.content

            if msg.tool_calls:
                # Add the assistant's tool calls to history
                messages.append(msg)

                for tc in msg.tool_calls:
                    tool_name = tc.function.name
                    args = json.loads(tc.function.arguments)

                    # Execute the tool
                    result = self.tools[tool_name](**args)

                    # Add the observation result to history
                    messages.append({
                        "role": "tool",
                        "tool_call_id": tc.id,
                        "content": json.dumps(result)
                    })
                    print(f"  [Tool: {tool_name}({args}) → {result}]")

        return "ReAct loop reached maximum iterations"

    def _build_system_prompt(self) -> str:
        return """You are an intelligent assistant capable of using tools.
Follow the ReAct pattern: think first, then act, observe the result, then decide the next step.
If the task is complete, directly give the final answer."""

    def _format_tools(self) -> list:
        return [
            {
                "type": "function",
                "function": {
                    "name": name,
                    "description": func.__doc__ or "",
                    "parameters": get_schema(func)
                }
            }
            for name, func in self.tools.items()
        ]

Advantages and Limitations of ReAct

Advantages:

• Observable: Every step of thought and action is traceable
• Self-correcting: Strategies can be adjusted after observing erroneous results
• Composable: Automatically combines multiple tools into a solution

Limitations:

• Unpredictable number of iterations (may loop infinitely)
• Multiple API calls increase latency and cost
• Dependent on the quality of observations returned by tools

MCP Protocol & Tool Ecosystem

Why MCP is Needed

Function Calling has a fundamental problem: tool definition and consumption are coupled. Every Agent developer needs to hard-code the tool’s JSON Schema in their own code. When a tool API is upgraded, all Agents that integrate that tool need manual updates.

Traditional Function Calling pattern:
  Agent A ──hard-coded Schema──→ web_search v1
  Agent B ──hard-coded Schema──→ web_search v1  ← duplicated definition
  Agent C ──hard-coded Schema──→ web_search v1  ← duplicated definition

MCP pattern:
  Agent A ──┐
  Agent B ──┼── MCP Client ──→ MCP Server (web_search)
  Agent C ──┘                    ↑
                          Tool provider defines Schema

The core idea of MCP (Model Context Protocol) is “whoever provides the tool defines the tool.” It shifts the responsibility for tool definition from the Agent (consumer) to the tool service (provider).

MCP Architectural Roles

Building MCP Server & Client

MCP Server Example:

from mcp.server import Server, stdio_server
from mcp.types import Tool, TextContent

app = Server("web-search")

@app.list_tools()
async def list_tools() -> list[Tool]:
    return [
        Tool(
            name="web_search",
            description="Search the internet to get the latest information",
            inputSchema={
                "type": "object",
                "properties": {
                    "query": {"type": "string", "description": "Search keywords"},
                    "num_results": {"type": "integer", "default": 5}
                },
                "required": ["query"]
            }
        )
    ]

@app.call_tool()
async def call_tool(name: str, arguments: dict) -> list[TextContent]:
    if name == "web_search":
        results = search_engine.search(
            arguments["query"],
            num=arguments.get("num_results", 5)
        )
        return [TextContent(type="text", text=json.dumps(results))]
    raise ValueError(f"Unknown tool: {name}")

# Start Server via stdio
async def main():
    async with stdio_server() as streams:
        await app.run(streams[0], streams[1], app.create_initialization_options())

if __name__ == "__main__":
    import asyncio
    asyncio.run(main())

MCP Client Integration Example:

from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client

async def run_with_mcp_tools(user_query: str):
    server_params = StdioServerParameters(
        command="python",
        args=["web_search_server.py"]
    )

    async with stdio_client(server_params) as (read, write):
        async with ClientSession(read, write) as session:
            await session.initialize()

            # Fetch tool definitions from MCP Server
            tools_result = await session.list_tools()
            tools = tools_result.tools

            # Convert to OpenAI-format tools parameter
            openai_tools = [
                {
                    "type": "function",
                    "function": {
                        "name": tool.name,
                        "description": tool.description,
                        "parameters": tool.inputSchema
                    }
                }
                for tool in tools
            ]

            # Standard Function Calling flow
            response = client.chat.completions.create(
                model="gpt-4",
                messages=[{"role": "user", "content": user_query}],
                tools=openai_tools
            )

            # If the model wants to call tools, execute via MCP Client
            if response.choices[0].message.tool_calls:
                for tc in response.choices[0].message.tool_calls:
                    result = await session.call_tool(
                        tc.function.name,
                        json.loads(tc.function.arguments)
                    )
                    # ... return result to the model

Engineering Value of MCP

• Decoupling: Tool definition and service implementation are separated, allowing independent iteration
• Dynamic Discovery: Agent automatically pulls the latest tool list at startup, zero maintenance cost
• Ecosystem Effect: Third parties can provide standardized MCP Servers; Agent developers only need to integrate an MCP Client
• Multiple Transport Protocols: Supports stdio (local process communication) and HTTP/SSE (remote communication)

Reflection & Self-Correction

Why Reflection is Needed

LLM-generated content is not always usable. It may:

• Silently “correct” variable names in code causing runtime errors
• Continue reasoning based on incorrect “facts,” producing cascading errors
• Forget earlier constraints somewhere in a very long output

The core idea of Reflection is: give the model an opportunity to review and evaluate the complete content it has already generated, so it can discover and correct errors.

Two Patterns of Self-Feedback

Pattern 1: Single-Step Instruction Reflection

In a single call, instruct the model via prompt to generate an answer and reflect at the same time:

prompt_with_reflection = """
## Task
1. Polish the language expression of the following course content, output the full polished content.
2. Reflect on the polished content:
   - Does it comply with writing standards
   - Apart from language expression, was any other content accidentally modified
   Output the reflection results and modification suggestions.
3. Revise the course content based on the suggestions, output the revised full content.

## Course Draft
{original_content}
"""

Advantages: Simple implementation, completes in one call. Disadvantages: The model is prone to self-verification with the same thinking bias, falling into “self-justification.”

Pattern 2: Two-Step “Generate-Review”

Separate generation and review into two independent calls:

def generate_and_review(content: str) -> str:
    # Step 1: Generate
    draft_resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{
            "role": "system",
            "content": "You are a course writer. Polish the following content to make it more engaging."
        }, {
            "role": "user",
            "content": content
        }]
    )
    draft = draft_resp.choices[0].message.content

    # Step 2: Review (use a different system prompt!)
    review_resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{
            "role": "system",
            "content": """You are a strict technical reviewer.
Please compare the [Original Content] and [Polished Content]:
- If only wording was modified and technical content (like code) is fully identical → reply "Pass"
- If technical content was modified → reply "Fail", indicate the specific location"""
        }, {
            "role": "user",
            "content": f"Original Content:\n{content}\n\nPolished Content:\n{draft}"
        }]
    )

    # Step 3: If not passed, feed the review result back to the writing Agent for correction
    review = review_resp.choices[0].message.content
    if "Fail" in review:
        # ... feed the review back to the writing Agent for correction
        pass

    return draft

Core advantage: The reviewer Agent’s perspective differs from the writer Agent’s, avoiding role bias. You can even set up multiple specialized reviewer Agents — fact review, logic review, style review, safety review.

External Feedback

Self-feedback has inherent limitations: the model cannot verify the correctness of content in a real environment. The idea of external feedback is to execute the generated results in a real environment and use objective facts to validate.

def generate_code_and_validate(spec: str) -> str:
    # Step 1: Generate code
    code_resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{"role": "user", "content": f"Write Python code based on the following requirements:\n{spec}"}]
    )
    code = extract_code(code_resp.choices[0].message.content)

    # Step 2: External execution validation
    import subprocess, tempfile
    with tempfile.NamedTemporaryFile(suffix=".py", mode="w") as f:
        f.write(code)
        f.flush()
        result = subprocess.run(
            ["python", f.name],
            capture_output=True,
            text=True,
            timeout=30
        )

    # Step 3: Feed errors back to the model for correction
    if result.returncode != 0:
        fix_prompt = f"""The following code produced an error when executed:

Code:
{code}

Error:
{result.stderr}

Please fix the code and output the complete corrected version."""
        fix_resp = client.chat.completions.create(
            model="gpt-4",
            messages=[{"role": "user", "content": fix_prompt}]
        )
        return fix_resp.choices[0].message.content

    return code

Application scenarios for external feedback:

• Code execution validation: Run code with a code interpreter, catch runtime errors
• JSON Schema validation: Use libraries like Pydantic to validate structured output
• Numerical computation verification: Use calculator tools to verify mathematical results
• Visualization rendering verification: After generating a chart, let the model “see” the rendered result for visual inspection

Plan & Execute Pattern

Why Explicit Planning is Needed

When having an Agent directly execute complex tasks, common problems are:

• Forgetting: “Forgetting” earlier constraints when processing later steps
• Cascading errors: Early errors become the foundation for subsequent reasoning, with error amplification
• Structural oversight: The model tends toward linear processing and fails to identify parallel/dependency relationships in tasks

The core idea of the Plan & Execute pattern: Plan first, then execute — first formulate a complete action plan, confirm it through review, then execute step by step.

Plan Mode Implementation

from typing import List
from pydantic import BaseModel

class PlanStep(BaseModel):
    step_id: int
    description: str
    dependencies: List[int] = []  # IDs of dependent steps
    tool: str = ""               # tool to use
    expected_output: str = ""    # expected output

class ExecutionPlan(BaseModel):
    goal: str
    steps: List[PlanStep]

def plan_and_execute(task: str) -> str:
    # Phase 1: Formulate the plan
    plan_prompt = f"""
    You are a project planning expert. Please create a detailed execution plan for the following task.

    Requirements:
    1. Decompose the task into concrete steps
    2. Mark dependencies between steps
    3. State the expected output for each step

    Task: {task}

    Please output the plan in JSON format."""

    plan_resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{"role": "user", "content": plan_prompt}],
        response_format={"type": "json_object"}
    )
    plan = ExecutionPlan.model_validate_json(
        plan_resp.choices[0].message.content
    )

    # Phase 2: Execute based on dependencies
    results = {}
    executed = set()

    while len(executed) < len(plan.steps):
        for step in plan.steps:
            if step.step_id in executed:
                continue
            # Check if all dependencies have been executed
            if all(dep in executed for dep in step.dependencies):
                # Execute the step
                result = execute_step(step, results)
                results[step.step_id] = result
                executed.add(step.step_id)

    # Phase 3: Summarize results
    return summarize_results(plan, results)

Fixed Workflows: Pipeline Pattern

When a task’s steps are deterministic and repeatable, they should be solidified into a pipeline:

Input → Step 1 → Step 2 → Step 3 → ... → Output

class Pipeline:
    """Fixed pipeline: each step's output is the next step's input"""

    def __init__(self):
        self.steps = []

    def add_step(self, name: str, func):
        self.steps.append({"name": name, "func": func})

    def run(self, input_data):
        result = input_data
        for step in self.steps:
            print(f"  [Execute] {step['name']}")
            result = step["func"](result)
        return result

# Example: Document processing pipeline
pipeline = Pipeline()
pipeline.add_step("Parse PDF", parse_pdf_to_text)
pipeline.add_step("Clean Text", clean_text)
pipeline.add_step("Split Sections", split_sections)
pipeline.add_step("Vectorize", vectorize_chunks)
pipeline.add_step("Store Index", store_to_vectordb)

pipeline.run("document.pdf")

Workflow Orchestration Patterns

Five Core Workflow Patterns

Complex tasks require organizing Agent nodes according to specific topologies. Here are five core patterns:

Branching (Router)

Judge the task type at the entry node and route to different processing paths.

def router_agent(user_input: str):
    """Route to different processing pipelines based on intent"""
    classify_prompt = f"""
    Analyze the type of the following user request and reply with a single word:
    - code_review: check/validate code
    - style_review: polish/optimize language
    - fact_check: verify factual/conceptual accuracy

    Request: {user_input}
    Type:"""

    intent = client.chat.completions.create(
        model="gpt-4o-mini",  # use a lightweight model to save cost
        messages=[{"role": "user", "content": classify_prompt}],
        temperature=0
    ).choices[0].message.content.strip()

    pipelines = {
        "code_review": code_review_pipeline,
        "style_review": style_review_pipeline,
        "fact_check": fact_check_pipeline
    }
    return pipelines.get(intent, default_pipeline)(user_input)

Parallel Execution

Simultaneously dispatch mutually independent subtasks, then aggregate at the end.

              ┌→ Code Check ──┐
User Input → Split ─┼→ Fact Check ──┼→ Merge → Summary Report
              └→ Style Check ─┘

import asyncio

async def parallel_review(notebook_content: str):
    """Run three reviews on course content in parallel"""
    tasks = [
        asyncio.create_task(check_code(notebook_content)),
        asyncio.create_task(check_facts(notebook_content)),
        asyncio.create_task(check_style(notebook_content))
    ]

    code_result, fact_result, style_result = await asyncio.gather(*tasks)

    # Summarize
    return generate_summary_report(code_result, fact_result, style_result)

Mixture-of-Agents (MoA)

Multiple different models process the same task, and an aggregator synthesizes the best result.

             ┌→ Model A (good at reasoning) ──┐
User Question → Split ─┼→ Model B (good at creativity) ──┼→ Aggregator → Best Answer
             └→ Model C (good at accuracy) ──┘

The core finding of MoA is model “Collaborativeness”: when a model can reference other models’ outputs, it often generates higher-quality responses.

def mixture_of_agents(task: str):
    """MoA implementation: multiple models + aggregation"""
    # Layer 1: Proposers generate in parallel
    proposers = ["gpt-4", "claude-3-opus", "gemini-pro"]
    proposals = []

    for model in proposers:
        resp = client.chat.completions.create(
            model=model,
            messages=[{"role": "user", "content": task}]
        )
        proposals.append(resp.choices[0].message.content)

    # Layer 2: Aggregator synthesizes
    aggregator_prompt = f"""
    Below are {len(proposals)} responses to the same question. Please synthesize their strengths
    and produce a single optimal answer.

    {format_proposals(proposals)}

    Synthesized answer:"""

    final = client.chat.completions.create(
        model="gpt-4",  # use the strongest model for aggregation
        messages=[{"role": "user", "content": aggregator_prompt}]
    )
    return final.choices[0].message.content

Human-in-the-Loop (HITL)

Introduce human review at key nodes, forming an “AI executes → human approves → AI continues” loop.

def hitl_workflow(task: str):
    """Human-in-the-loop workflow"""
    plan = generate_plan(task)
    print(f"Execution Plan:\n{format_plan(plan)}")

    approval = input("Approve this plan? (y/n): ")
    if approval.lower() != 'y':
        return "Task cancelled"

    for step in plan.steps:
        result = execute_step(step)
        print(f"Step {step.step_id} complete: {result['summary']}")

        if step.get("requires_review"):
            review = input(f"Please review the step result (approve/modify/reject): ")
            if review == "reject":
                print("Step rejected, re-executing...")
                result = execute_step(step, feedback=review)

    return generate_final_output()

Pattern Selection Methodology

Best practice is the “explore-solidify” hybrid approach: first use Plan & Execute to discover the optimal solution, then solidify it into a Pipeline for mass production.

Hierarchical Collaboration Pattern

Leader-Worker Architecture

Hierarchical collaboration (Hierarchical/Team Leader Pattern) is the most intuitive multi-Agent collaboration pattern. It mimics the organizational structure of “project manager + team members”:

The Leader Agent is responsible for:

1. Receiving and understanding the top-level task
2. Decomposing it into subtasks and assigning them to appropriate Workers
3. Tracking overall progress
4. Aggregating Worker outputs

Worker Agents each have domain-specific expertise and focus on executing their assigned subtasks.

Implementing Hierarchical Collaboration via Handoff

class LeaderWorkerSystem:
    """Hierarchical collaboration system implementation"""

    def __init__(self):
        self.workers = {
            "instructional_designer": self._create_worker(
                "You are an instructional designer, skilled at designing course outlines and learning paths."
            ),
            "data_scientist": self._create_worker(
                "You are a data scientist, skilled at writing Python data analysis code and case studies."
            ),
            "content_writer": self._create_worker(
                "You are a content writer, skilled at transforming technical content into engaging course scripts."
            )
        }
        self.leader = self._create_leader()

    def _create_leader(self):
        return {
            "system_prompt": """You are a course project manager. Your responsibilities are:
1. Analyze requirements and decompose them into subtasks
2. Assign tasks to the appropriate experts
3. Integrate each expert's output into a complete course
Available expert team: instructional_designer, data_scientist, content_writer""",
            "tools": [
                {
                    "type": "function",
                    "function": {
                        "name": "delegate_to_worker",
                        "description": "Delegate a subtask to a specified expert",
                        "parameters": {
                            "type": "object",
                            "properties": {
                                "worker": {
                                    "type": "string",
                                    "enum": list(self.workers.keys()),
                                    "description": "The expert receiving the task"
                                },
                                "task": {
                                    "type": "string",
                                    "description": "Specific subtask description"
                                }
                            },
                            "required": ["worker", "task"]
                        }
                    }
                }
            ]
        }

    def run(self, project_brief: str) -> str:
        """Execute a complete course development project"""
        messages = [
            {"role": "system", "content": self.leader["system_prompt"]},
            {"role": "user", "content": project_brief}
        ]

        # Leader loop
        while True:
            response = client.chat.completions.create(
                model="gpt-4",
                messages=messages,
                tools=self.leader["tools"]
            )
            msg = response.choices[0].message

            if msg.content and not msg.tool_calls:
                return msg.content  # Final aggregated output

            if msg.tool_calls:
                messages.append(msg)
                for tc in msg.tool_calls:
                    if tc.function.name == "delegate_to_worker":
                        args = json.loads(tc.function.arguments)
                        # Call Worker to execute the subtask
                        worker_result = self._run_worker(
                            args["worker"], args["task"]
                        )
                        messages.append({
                            "role": "tool",
                            "tool_call_id": tc.id,
                            "content": worker_result
                        })

    def _run_worker(self, worker_name: str, task: str) -> str:
        worker = self.workers[worker_name]
        resp = client.chat.completions.create(
            model="gpt-4",
            messages=[
                {"role": "system", "content": worker},
                {"role": "user", "content": task}
            ]
        )
        return resp.choices[0].message.content

Pros and Cons of Hierarchical Collaboration

Advantages:

• Clear structure, each Agent has well-defined responsibilities
• The Leader controls the big picture, preventing deviation from the goal
• Each Worker has an independent context window, enabling more focus
• Supports parallel task delegation

Disadvantages:

• Workers do not communicate directly with each other; information transfer has delay/distortion
• The Leader becomes a single point of bottleneck
• The final assembled output may lack a sense of overall coherence

Blackboard Collaboration Pattern

Decentralized Co-Creation

The Blackboard pattern (Blackboard/Co-creation Pattern) mimics the working style of “experts gathered around a whiteboard brainstorming.” It has no centralized coordinator; all Agents equally read from and write to a shared space:

Blackboard Pattern Implementation

class BlackboardSystem:
    """Blackboard collaboration system"""

    def __init__(self, agents: dict, max_rounds: int = 3):
        self.agents = agents
        self.max_rounds = max_rounds
        self.blackboard = []  # shared space

    def run(self, problem: str) -> str:
        # Write the problem to the blackboard
        self.blackboard.append({"source": "user", "content": problem})

        for round_num in range(self.max_rounds):
            print(f"\n=== Round {round_num + 1} ===")
            new_contributions = []

            # All Agents read the blackboard in parallel and contribute
            for name, agent_config in self.agents.items():
                contribution = self._agent_contribute(
                    name, agent_config, self.blackboard
                )
                if contribution:
                    new_contributions.append({
                        "source": name,
                        "content": contribution
                    })

            # Write new contributions to the blackboard
            self.blackboard.extend(new_contributions)

            # Check if consensus has been reached
            if self._check_consensus():
                break

        return self._synthesize_final_answer()

    def _agent_contribute(self, name, config, blackboard):
        """Each Agent reads the blackboard and contributes their thoughts"""
        board_text = self._format_blackboard(blackboard)

        prompt = f"""You are a {config['role']}.

Current content on the shared blackboard:
{board_text}

Based on the existing discussion, offer your insights, additions, challenges, or new ideas.
If an existing proposal is already well-developed, you may agree and explain why."""

        resp = client.chat.completions.create(
            model="gpt-4",
            messages=[
                {"role": "system", "content": config["system_prompt"]},
                {"role": "user", "content": prompt}
            ]
        )
        return resp.choices[0].message.content

    def _format_blackboard(self, blackboard):
        return "\n\n".join([
            f"[{entry['source']}]: {entry['content']}"
            for entry in blackboard
        ])

    def _check_consensus(self):
        """Check whether the latest blackboard contributions have formed a consensus"""
        # Implement consensus detection logic
        pass

    def _synthesize_final_answer(self):
        """Synthesize the final solution from blackboard content"""
        pass

Blackboard Pattern vs. Hierarchical Pattern

Collaboration Pattern Selection Methodology

Learning from the Real World

Excellent multi-Agent system design comes from observing and distilling real-world team collaboration. Rather than memorizing abstract pattern names, go into the business and observe how human expert teams accomplish similar tasks.

Three dimensions of observation:

Hybrid Pattern Design

Real projects rarely use a single pattern. Hybrid designs are common:

                    ┌─────────────┐
                    │   Leader    │  ← Hierarchical pattern
                    └──────┬──────┘
           ┌───────────────┼───────────────┐
           ▼               ▼               ▼
    ┌──────────┐    ┌──────────┐    ┌──────────┐
    │Instructional│  │ Content   │    │ Review    │
    │ Designer   │  │ Writer    │    │ Leader    │
    │  Worker    │  │  Worker   │    └─────┬────┘
    └──────────┘    └──────────┘           │
                                  ┌────────┼────────┐
                                  ▼        ▼        ▼
                             ┌──────┐ ┌──────┐ ┌──────┐
                             │ Code │ │ Fact │ │Style │  ← Parallel pattern
                             │Check │ │Check │ │Check │
                             └──────┘ └──────┘ └──────┘
                                 │        │        │
                                 └────────┼────────┘
                                          ▼
                                    ┌──────────┐
                                    │ Summary  │
                                    │ Report   │
                                    └──────────┘

Cost Awareness

The token consumption of multi-Agent systems is typically 3-5x that of a single Agent. Trade-offs need to be considered during design:

def estimate_cost(num_agents: int, avg_tokens_per_agent: int,
                  rounds: int = 1, price_per_1k: float = 0.01):
    """Estimate token cost for a multi-Agent system"""
    total_tokens = num_agents * avg_tokens_per_agent * rounds
    return total_tokens * price_per_1k / 1000

# Example: 5 Agents, 2000 tokens each, 3 rounds of blackboard discussion
cost = estimate_cost(5, 2000, 3)
print(f"Estimated cost: ${cost:.2f}")
# Actual numbers may be higher because blackboard content is also retransmitted

Short-Term Memory Management

Statelessness: The Root of the Problem

Large language models are fundamentally stateless. Each API call is independent — it won’t remember the content of the previous conversation, your preferences, or previously reached consensus.

# These two calls are completely independent of each other
response1 = client.chat.completions.create(
    model="gpt-4",
    messages=[{"role": "user", "content": "My name is John"}]
)
# Response: "Hello John! How can I help you?"

response2 = client.chat.completions.create(
    model="gpt-4",
    messages=[{"role": "user", "content": "What's my name?"}]
)
# Response: "Sorry, I don't know your name because we haven't spoken before."

The solution: maintain a conversation history list and send the complete history each time.

class ConversationBuffer:
    """Simplest short-term memory: save the full conversation history"""

    def __init__(self, system_prompt: str = ""):
        self.messages = []
        if system_prompt:
            self.messages.append({"role": "system", "content": system_prompt})

    def chat(self, user_input: str) -> str:
        self.messages.append({"role": "user", "content": user_input})
        response = client.chat.completions.create(
            model="gpt-4",
            messages=self.messages
        )
        reply = response.choices[0].message.content
        self.messages.append({"role": "assistant", "content": reply})
        return reply

Context Window Pressure

As conversation turns increase, the full-history approach faces three fatal problems:

1. Exceeding the context window: History length exceeds model limits → program error
2. Cost spiral: Re-sending the entire history every call → linear growth in token consumption
3. Attention dilution: In long contexts, the model’s ability to process information in the middle portion significantly degrades

Three Memory Management Strategies

Strategy 1: Fixed Window Truncation (Context Truncation)

Keep only the most recent N conversation turns or N tokens.

class TruncationMemory:
    def __init__(self, max_tokens: int = 4000):
        self.max_tokens = max_tokens
        self.messages = []

    def add_and_truncate(self, role: str, content: str):
        self.messages.append({"role": role, "content": content})

        # Delete the oldest messages until total tokens are within the limit
        while self._total_tokens() > self.max_tokens:
            self.messages.pop(0)  # delete the oldest non-system message

    def _total_tokens(self):
        return sum(count_tokens(m["content"]) for m in self.messages)

Advantages: Extremely simple implementation, low computational overhead. Disadvantages: If key information was in early conversations, the Agent will “forget” it after truncation.

Strategy 2: Rolling Summary

Before forgetting, first extract the key points.

Conversation History: [msg1, msg2, msg3, msg4, msg5, msg6, msg7, msg8]
                          ↓ compress the first half
         [Summary(m1-m4), msg5, msg6, msg7, msg8]
                          ↓ continue compressing
         [Summary(m1-m6), msg7, msg8]

class RollingSummaryMemory:
    def __init__(self, summary_trigger_tokens: int = 3000):
        self.summary_trigger = summary_trigger_tokens
        self.messages = []
        self.summary = ""

    def add_message(self, role: str, content: str):
        self.messages.append({"role": role, "content": content})

        if self._total_tokens() > self.summary_trigger:
            self._compress()

    def _compress(self):
        """Compress the first half of the conversation into a summary"""
        split_point = len(self.messages) // 2
        to_compress = self.messages[:split_point]
        remaining = self.messages[split_point:]

        compress_prompt = f"""
        Please summarize the following conversation history into a concise paragraph,
        preserving key information:

        Conversation:
        {format_messages(to_compress)}

        Summary:"""

        resp = client.chat.completions.create(
            model="gpt-4o-mini",  # use a lightweight model for summarization
            messages=[{"role": "user", "content": compress_prompt}]
        )
        self.summary = resp.choices[0].message.content

        # Replace compressed messages with the summary
        self.messages = [
            {"role": "system", "content": f"Conversation History Summary:\n{self.summary}"}
        ] + remaining

    def _total_tokens(self):
        return sum(count_tokens(m["content"]) for m in self.messages)

Advantages: Compresses length while preserving core information, maintaining long-term coherence. Disadvantages: Extra API call cost; summary quality directly affects subsequent conversations.

Strategy 3: Vector-Based Retrieval

The most intelligent approach: store conversation history in a vector database and retrieve the most relevant memories on demand.

class VectorBasedMemory:
    def __init__(self):
        self.conversations = []  # full conversation records
        self.embeddings = []     # vector for each conversation turn
        self.embed_model = "text-embedding-3-small"

    def store_conversation(self, user_msg: str, assistant_msg: str):
        """Store a conversation turn and vectorize it"""
        conversation_text = f"User: {user_msg}\nAssistant: {assistant_msg}"
        self.conversations.append(conversation_text)

        vec = client.embeddings.create(
            model=self.embed_model,
            input=conversation_text
        )
        self.embeddings.append(vec.data[0].embedding)

    def retrieve_relevant(self, current_query: str, top_k: int = 5):
        """Retrieve the history conversations most relevant to the current query"""
        query_vec = client.embeddings.create(
            model=self.embed_model,
            input=current_query
        ).data[0].embedding

        # Calculate similarity
        similarities = [
            np.dot(query_vec, mem_vec) /
            (np.linalg.norm(query_vec) * np.linalg.norm(mem_vec))
            for mem_vec in self.embeddings
        ]

        top_indices = np.argsort(similarities)[-top_k:][::-1]
        return [self.conversations[i] for i in top_indices]

Advantages: Fundamentally breaks free from context window length limits, semantically precise matching. Disadvantages: Highest system complexity, introduces Embedding models and vector databases.

Strategy Selection Guide

Long-Term Memory & Vector Storage

From Passive Context to Active Memory Management

A truly intelligent Agent should not merely passively receive pre-processed context; it should be able to actively manage its own memory — deciding for itself when to remember something and when to recall something.

This requires providing the Agent with two core tools:

# Memory management tools available to the Agent
memory_tools = [
    {
        "type": "function",
        "function": {
            "name": "record_to_memory",
            "description": "Store important information in long-term memory. Use when the user explicitly states a preference, provides key information, or completes an important decision.",
            "parameters": {
                "type": "object",
                "properties": {
                    "content": {
                        "type": "string",
                        "description": "The content to remember"
                    },
                    "category": {
                        "type": "string",
                        "enum": ["preference", "fact", "decision", "context"],
                        "description": "Memory category"
                    }
                },
                "required": ["content"]
            }
        }
    },
    {
        "type": "function",
        "function": {
            "name": "retrieve_from_memory",
            "description": "Retrieve relevant information from long-term memory. Use when needing to recall user preferences, historical decisions, or previously discussed content.",
            "parameters": {
                "type": "object",
                "properties": {
                    "query": {
                        "type": "string",
                        "description": "Retrieval query"
                    },
                    "category": {
                        "type": "string",
                        "description": "Optional, limit retrieval to a specific memory category"
                    }
                },
                "required": ["query"]
            }
        }
    }
]

Short-Term Memory vs. Long-Term Memory

┌─────────────────────────────────────────────────────┐
│               Memory System Architecture              │
├─────────────────────────────────────────────────────┤
│                                                     │
│  Short-term Memory                                   │
│  ┌───────────────────────────────────────────────┐  │
│  │ Storage: Conversation buffer (messages list)  │  │
│  │ Management: Truncation / Summarization        │  │
│  │ Lifecycle: Current session                    │  │
│  │ Responsibility: Maintain conversational        │  │
│  │ coherence, remember "what we were just          │  │
│  │ talking about"                                 │  │
│  └───────────────────────────────────────────────┘  │
│                                                     │
│  Long-term Memory                                    │
│  ┌───────────────────────────────────────────────┐  │
│  │ Storage: Vector DB + metadata store           │  │
│  │ Management: Vector retrieval + tool-based     │  │
│  │ invocation                                    │  │
│  │ Lifecycle: Cross-session                      │  │
│  │ Responsibility: Persist key information,       │  │
│  │ support intelligent cross-session retrieval    │  │
│  └───────────────────────────────────────────────┘  │
│                                                     │
└─────────────────────────────────────────────────────┘

Memory Management Best Practices

1. Be selective about what to remember: More memory is not always better. Low-value information interferes with subsequent retrieval. Establish a write admission mechanism — only write when the user explicitly requests it or the information’s importance exceeds a threshold.

2. Continuous governance: Memory is a dynamic data asset. Regularly clean up outdated information, merge duplicate entries, and verify factual accuracy. Provide users with an interface to manage their memory (view, modify, delete).

3. Contextualized application: Different scenarios have different memory needs. In a course documentation workflow, personalized preferences should not be recorded; for product fact information (API parameters, feature limitations, etc.), it should be recorded and periodically reviewed for validity.

Skill System Design

Evolution from Prompt to Skill

A carefully crafted Prompt has high value, but it only works within the current session. When the session ends, the knowledge is scattered. Skill elevates Prompts into reusable, version-managed, team-shareable professional knowledge modules.

Evolution path:

Ad-hoc Prompt ("Help me review this course")
    ↓ Problem: have to rewrite every time, inconsistent standards
Fixed Prompt (stored in chat history)
    ↓ Problem: scattered, hard to find, impossible to collaborate
Standalone File (course-review.md)
    ↓ Problem: file bloat, hard to maintain
Knowledge Base Directory (course-review/)
    ↓ Problem: still need to manually tell the Agent what to do
Skill (SKILL.md + resource files + scripts)

Skill Structure

A standard Skill consists of YAML frontmatter + Markdown body:

---
name: course-review
description: |
  Review course content for technical accuracy, code correctness, and pedagogical quality.
  Use this skill when the user requests reviewing, auditing, or evaluating existing courses or training materials.
---

# Course Review Skill

## Review Process
1. Extract the Notebook directory structure to understand the overall chapter layout
2. Review each section chapter by chapter, checking against the following directions:
   - Code executability (see [code-quality.md](code-quality.md))
   - Content accuracy (see [content-accuracy.md](content-accuracy.md))
   - Teaching style (see [style-guide.md](style-guide.md))
   - Outdated APIs (see [outdated-api.md](outdated-api.md))
3. Aggregate review results and generate a report in the output format

## Anti-Pattern Checklist
- ❌ Do not modify variable names or API version numbers in code
- ❌ Do not skip any check item
- ❌ Do not introduce new technical concepts during the review

## Output Format
For each check, provide: Pass/Fail/Needs Human Review + location + modification suggestion

Directory structure:

course-review/
├── SKILL.md              # Main instruction entry point
├── code-quality.md       # Code executability check items
├── content-accuracy.md   # Factual accuracy check items
├── style-guide.md        # Teaching style positive and negative examples
├── outdated-api.md       # Outdated API reference table
└── scripts/
    ├── extract_toc.py    # Extract Notebook table of contents
    └── validate_code.py  # Automatically execute code validation

Skill vs RAG

Many people confuse Skill and RAG. Their core distinction is:

Five-Step Method for Writing High-Quality Skills

Step 1: Determine if it's worth doing
  ├─ Does this task involve "expert intuition"? (Experts do it well but beginners easily miss edge cases)
  ├─ Is this task sufficiently complex? (If it can be done in 3 clicks in a GUI, skip it)
  └─ Will this task be executed repeatedly? (If only once, skip it)

Step 2: Extract what to write
  ├─ Extract the expert's decision tree, not just steps
  ├─ Inject anti-pattern checks ("what pitfalls must absolutely be avoided")
  ├─ Template pattern: provide standardized output templates
  └─ Examples pattern: use examples instead of text descriptions

Step 3: Write good instructions
  ├─ Concise: every sentence should be worth its token cost
  ├─ Freedom matching: constraint level matches task risk
  │   ├─ Low freedom (database migration): precise scripts
  │   ├─ Medium freedom (report generation): pseudo-code / parameterized
  │   └─ High freedom (code review): text instructions
  └─ Progressive disclosure: keep the main file lean, load details on demand

Step 4: Equip with proper tools
  ├─ Workflow: traceable Checklists
  ├─ Feedback loop: Run → Check → Fix → Repeat
  ├─ High-risk operations: verify the plan before executing
  └─ AI-friendly scripts: structured state + fix hints + graceful degradation + idempotent safety

Step 5: Verify and iterate
  ├─ Phase 1: Establish an evaluation baseline (have evaluation before writing the Skill)
  ├─ Phase 2: Extract the Skill (use AI to summarize repeatedly provided information)
  └─ Phase 3: Dual-Agent testing iteration (designer vs. user)

Skill as Code

Treat Skills as code and enjoy the methodology of code engineering:

• Version management: Skill directories are checked into Git; every modification has a history
• Code review: New/modified Skills require PR review
• CI/CD: Skill changes trigger evaluation pipelines to ensure no regression
• Community sharing: Share and reuse Skills like open-source libraries

Progressive Disclosure & Skill as Code

The Design Philosophy of Progressive Disclosure

The core contradiction faced by traditional Prompt engineering: too much information → context crowding, attention dilution; too little information → Agent lacks sufficient knowledge to support decisions.

Progressive Disclosure is a design pattern that resolves this contradiction:

Layer 1: Skill list (visible when Agent starts)
  ↓ Agent chooses to activate a Skill
Layer 2: SKILL.md (loaded after Skill activation)
  ↓ Agent executes a certain step
Layer 3: Sub-files (load corresponding resources on demand)
  ↓ Need to verify a specific technical detail
Layer 4: Script execution (provides deterministic results)

Design principles:

• Maintain a flat structure, avoid deep nested references
• SKILL.md directly links all resource files, ensuring “one step” reachability
• Don’t stuff everything into SKILL.md — it’s just the entry point

AI-Friendly Script Design

The quality of tool script output directly impacts Agent performance. Four key principles:

1. Structured status feedback — Output JSON instead of free text:

# ❌ Poor output
print("Error: exit code 1")
print("Could not find module 'openpyxl'")

# ✅ AI-friendly output
print(json.dumps({
    "status": "failed",
    "error_code": "MODULE_NOT_FOUND",
    "missing_module": "openpyxl",
    "fix_hint": "Run pip install openpyxl to install the missing dependency",
    "fallback_available": True,
    "affected_cells": [42, 43, 44]
}))

2. Errors include fix hints — Tell the Agent “how to fix” rather than just “what went wrong.”

3. Graceful degradation over crashing — Provide defaults and continue where possible.

4. Idempotent and safe — Support repeated execution without side effects:

Evaluation Framework Design

Why “Feels Good Enough” is Unreliable

Optimizing an Agent based purely on subjective feeling leads to:

• Hard to quantify: “Feels better” cannot serve as an engineering decision basis
• Lack of standards: Evaluation criteria may drift between different testers or different time points
• Cannot reproduce: Cannot systematically regression test to ensure new changes haven’t broken old functionality

Evaluation-Driven Development elevates evaluation from the end of the development cycle to the core:

         ┌──────────────────┐
         │  Evaluation =     │
         │  Quality Ruler    │
         └────────┬─────────┘
                  │
    ┌─────────────┼─────────────┐
    ▼             ▼             ▼
What can be    The faster and  Determines the
measured can   more accurate    upper bound of
be improved    the feedback,    product capability
               the more efficient
               the improvement

End-to-End Evaluation

End-to-end evaluation focuses on the final output, answering “Is this Agent good for users?”

Evaluation metrics fall into two categories:

White-box Evaluation

When Agent processes become complex, end-to-end evaluation cannot pinpoint specific issues. White-box evaluation advocates going deep inside the system, designing separate evaluation systems for key components.

End-to-End Evaluation (only looks at final output):
  Agent overall → Score 4.2/5 → but doesn't know where the problem is

White-box Evaluation (examines intermediate stages):
  ┌────────────┐    ┌────────────┐    ┌────────────┐
  │ Concept     │    │ Code Gen   │    │ Style       │
  │ Explanation │    │            │    │ Adjustment  │
  │ Score 3.1/5 │    │ Score 4.8/5│    │ Score 4.5/5 │
  └────────────┘    └────────────┘    └────────────┘
       ↑ Bottleneck is here!

Core advantages of white-box evaluation:

• Clear signal: Uninterfered improvement signal, focus on the real bottleneck
• Fast iteration: Only need to test a single component, no need to run the entire process
• Precise optimization: Each change’s effect can be precisely measured

LLM-as-Judge

Using LLMs as Evaluators

Have another LLM play the role of “evaluation expert,” automatically scoring based on defined metrics and scoring rubrics.

def llm_judge_evaluate(generated_output: str, criteria: dict):
    """Use an LLM as an evaluator"""
    judge_prompt = f"""
    You are a professional course quality evaluator. Please score according to the following criteria:

    Evaluation Criteria:
    {json.dumps(criteria, indent=2, ensure_ascii=False)}

    Content to Evaluate:
    {generated_output}

    Please output the scoring result in JSON format:
    {{
        "scores": {{
            "accuracy": <1-5>,
            "clarity": <1-5>,
            "engagement": <1-5>
        }},
        "overall": <1-5>,
        "comments": "Overall evaluation"
    }}"""

    resp = client.chat.completions.create(
        model="gpt-4",
        messages=[{"role": "user", "content": judge_prompt}],
        response_format={"type": "json_object"}
    )
    return json.loads(resp.choices[0].message.content)

Biases of LLM Evaluators

When using LLMs as evaluators, you must be alert to their inherent biases:

Best practice: In the early stages, use human experts to establish a “golden test set” and use it to calibrate the LLM evaluator. Periodically verify the consistency of automated evaluation with manual spot checks.

Evaluation Metric Decomposition

Decompose vague evaluation goals into specific, individually checkable rubrics:

# Content quality evaluation decomposition example
Evaluation Dimension: "Content Quality"
Rubrics:
  - id: "pain_point"
    description: "Does it open with a specific pain point?"
    type: "boolean"
  - id: "theory_depth"
    description: "Does it clearly point out the limitations of the initial solution and introduce the core theory?"
    type: "boolean"
  - id: "code_relevance"
    description: "Are the code examples closely related to the theory being explained and sufficiently simplified?"
    type: "boolean"
  - id: "anti_pattern_check"
    description: "Does it avoid playful remarks like 'congratulations on unlocking a new skill'?"
    type: "boolean"

Evaluation-Driven Iteration

The Evaluation Closed Loop

Evaluation is not a one-time event, but an engine that continuously drives improvement:

    ┌──────────────────────────────────┐
    │                                  │
    ▼                                  │
┌─────────┐   ┌──────────┐   ┌─────────┐
│ Build   │ → │ Discover │ → │ Extract │
│ MVP     │   │ Issues   │   │ Metrics │
└─────────┘   └──────────┘   └─────────┘
                                  │
                                  ▼
┌─────────┐   ┌──────────┐   ┌─────────┐
│ Deploy  │ ← │ Regression│ ← │ Optimize│
│ to Prod │   │ Test     │   │ & Improve│
└─────────┘   └──────────┘   └─────────┘
                                  │
                                  └────→ (loop)

Business Experts Lead Evaluation Standards

Evaluation metrics (especially subjective ones) must be led by the most senior business experts:

1. Mobilize participation with business goals: Don’t say “help us define evaluation metrics”; say “this Agent will help you shorten the course production cycle from 2 weeks to 3 days while maintaining 90%+ user satisfaction.”

2. Provide structured tools to lower the barrier: Scoring rubric templates, case annotation tools, guiding questions like “If you could only look at three metrics to judge whether a course is good, which three would you choose?”

3. Establish a continuous collaboration mechanism: Weekly review meetings where experts look at data and the tech team adjusts the system, making decisions together.

The Efficiency Leverage of Evaluation

Not all evaluation needs to be fully automated and comprehensive. Start with the simplest method:

Level 1: Manual spot check → "Copy the code and run it"
Level 2: Automated scripts → "Write a script for batch execution"
Level 3: Integrated evaluation pipeline → CI/CD integration, automatically triggered on every PR
Level 4: Continuous monitoring → Real-time monitoring of key metrics in production

Each level has a different ROI. In the early stages, Level 1 has the highest ROI — fastest problem discovery, lowest implementation cost. As the system matures, gradually evolve toward higher levels.

Model Deployment Strategy

Business Requirements Analysis Framework

The first step in deploying an LLM application to production is not technology selection, but requirements analysis:

┌────────────────────────────────────────────┐
│        Business Requirements Matrix         │
├────────────────────────────────────────────┤
│                                            │
│  Functional Requirements (What to do):       │
│  ├─ Natural Language Processing → General LLM│
│  ├─ Code Generation → Code-optimized LLM    │
│  ├─ Mathematical Reasoning → Math-fine-tuned LLM│
│  ├─ Visual Understanding → Multimodal Model │
│  └─ Speech Processing → Speech Model        │
│                                            │
│  Non-Functional Requirements (How to do it):│
│  ├─ Performance: TTFT < 500ms, TPOT < 50ms │
│  ├─ Cost: per call < $0.01                 │
│  ├─ Stability: 99.9% availability          │
│  ├─ Security: Content filtering, privacy    │
│  │   protection                            │
│  └─ Compliance: Industry regulatory         │
│      requirements                          │
│                                            │
└────────────────────────────────────────────┘

Model Selection Strategy

Not every scenario requires the largest model. Model selection follows the “minimum viable” principle:

Task Complexity
    ↑
    │  ┌──────────────────────────┐
    │  │ Large Models (GPT-4, Claude)│
    │  │ - Complex reasoning       │
    │  │ - Multi-step planning     │
    │  │ - Creative generation     │
    │  └──────────────────────────┘
    │  ┌──────────────────────────┐
    │  │ Medium Models (GPT-4o-mini)│
    │  │ - Intent recognition      │
    │  │ - Structured extraction   │
    │  │ - Summary generation      │
    │  └──────────────────────────┘
    │  ┌──────────────────────────┐
    │  │ Small Models / Distilled  │
    │  │ - Text classification     │
    │  │ - Keyword matching        │
    │  │ - Format validation       │
    │  └──────────────────────────┘
    └─────────────────────────────────→ Call Frequency

Distillation: Giving Small Models Professional Capabilities

The core idea of distillation: “copy” the judgment capability of a large model to a small model.

Teacher Model (GPT-4)          Student Model (0.6B params)
      │                         │
      │  Generate labeled data    │
      ├─────────────────────────→│
      │  "Understand request      │  Learn the teacher's
      │   intent"                │  behavior patterns
      │  [Input → Output pairs]  │
      │                         │
      │  Result: Small model     │
      │  approaches teacher      │
      │  performance on          │
      │  specific tasks          │

Distillation vs. Fine-tuning:

Three distillation paths:

Inference Optimization

Performance Optimization Framework

LLM inference optimization can be divided into four directions:

Process Requests Faster

• Model miniaturization: Choose model variants with fewer parameters
• Quantization: INT4/INT8/FP16 quantization reduces computational resource demands
• Pruning: Remove redundant weights, reducing model complexity
• Knowledge distillation: Train small models using large model data

Quantization Precision Comparison:
  FP32 (full precision) → Baseline performance, highest computational overhead
  FP16 (half precision) → ~2x speedup, almost no precision loss
  INT8                  → ~4x speedup, minor precision loss
  INT4                  → ~8x speedup, precision impact needs careful evaluation

Reduce the Number of Requests to Process

• Context Cache: Cache the common prefix of multi-turn conversations to reduce redundant computation
• Batching: Combine multiple requests into one batch to improve hardware utilization
• Result caching: Directly return cached results for high-frequency identical queries

# Typical application of context caching
# In multi-turn conversations, System Prompt + historical knowledge documents are the common prefix
# First turn: full computation (full price)
# Subsequent turns: cache-hit portion billed at 20% of the price

Reduce Token Input/Output

• Input side: Streamline input, remove redundant information, generate summaries for long documents first
• Output side: Guide concise answers through prompts, set reasonable max_tokens

The design philosophy of max_tokens: it is a safety valve rather than a content control mechanism. Semantically complete, concise replies should be guided by prompts; max_tokens is more suitable as the last line of defense for cost control.

Parallel Processing

LLM inference is fundamentally large-scale matrix computation. Understand the difference between CPU and GPU:

GPU parallelization strategies:

• Data parallelism: Distribute data shards across multiple GPUs
• Model parallelism: Distribute different model layers across different devices
• Pipeline parallelism: Divide the computation process into stages executed sequentially

Don’t Default to Large Models

In many scenarios, simpler approaches are actually more efficient:

Safety Guardrails

Security Threats Facing LLMs

LLM applications face multi-layered security threats requiring systematic defense strategies:

Defense Strategy Matrix

Engineering Implementation of Safety Guardrails

class SafetyGuard:
    """Multi-layer safety guardrail implementation"""

    def __init__(self):
        self.blocked_keywords = set()    # custom sensitive words
        self.rate_limits = {}            # rate limit records
        self.max_tool_calls = 10         # max Agent tool calls
        self.dangerous_commands = {      # dangerous command blacklist
            "rm -rf", "DROP TABLE", "DELETE FROM",
            "os.system", "subprocess.call", "eval("
        }

    def check_input(self, user_input: str) -> tuple[bool, str]:
        """Input security check"""
        # 1. Sensitive word detection
        for keyword in self.blocked_keywords:
            if keyword in user_input.lower():
                return False, f"Input contains sensitive word: {keyword}"

        # 2. Command injection detection
        for dangerous in self.dangerous_commands:
            if dangerous.lower() in user_input.lower():
                return False, f"Potential dangerous command detected: {dangerous}"

        return True, "Passed"

    def check_tool_call(self, tool_name: str, args: dict) -> tuple[bool, str]:
        """Pre-tool-call audit"""
        # 1. Check call frequency
        if self.rate_limits.get(tool_name, 0) >= self.max_tool_calls:
            return False, f"Tool {tool_name} call limit exceeded"

        # 2. Check parameter safety
        args_str = json.dumps(args).lower()
        for dangerous in self.dangerous_commands:
            if dangerous.lower() in args_str:
                return False, f"Tool parameter contains dangerous command: {dangerous}"

        self.rate_limits[tool_name] = self.rate_limits.get(tool_name, 0) + 1
        return True, "Passed"

    def check_output(self, output: str) -> tuple[bool, str]:
        """Output content review"""
        # Detect whether sensitive information patterns appear in output
        sensitive_patterns = [
            r'\b\d{17}[\dXx]\b',           # ID card number
            r'\b1[3-9]\d{9}\b',            # mobile phone number
            r'[Pp]assword\s*[:=]\s*\S+',  # password pattern
        ]

        for pattern in sensitive_patterns:
            if re.search(pattern, output):
                return False, f"Output may contain sensitive information: {pattern}"

        return True, "Passed"

Circuit Breaker Mechanism

Set clear resource limits for each Agent task:

class CircuitBreaker:
    """Agent circuit breaker: prevent runaway loops from causing massive losses"""

    def __init__(self,
                 max_api_calls: int = 10,      # max API calls
                 max_wall_time: int = 300,      # max execution time (seconds)
                 max_cost: float = 0.50):       # max cost (USD)
        self.max_api_calls = max_api_calls
        self.max_wall_time = max_wall_time
        self.max_cost = max_cost
        self.reset()

    def reset(self):
        self.api_calls = 0
        self.start_time = time.time()
        self.total_cost = 0.0

    def check(self) -> tuple[bool, str]:
        """Check whether the circuit should break"""
        self.api_calls += 1
        elapsed = time.time() - self.start_time

        if self.api_calls > self.max_api_calls:
            return False, f"API call limit exceeded ({self.api_calls}/{self.max_api_calls})"
        if elapsed > self.max_wall_time:
            return False, f"Execution time limit exceeded ({elapsed:.0f}s/{self.max_wall_time}s)"
        if self.total_cost > self.max_cost:
            return False, f"Cost limit exceeded (${self.total_cost:.2f}/${self.max_cost:.2f})"

        return True, "Normal"

Harness Engineering

The Overall Blueprint for Production

Harness Engineering is the complete set of engineering practices that ensure an Agent system runs stably from development to production. It includes:

Observability

Use the OpenTelemetry standard to establish three types of data collection:

• Metrics: Token consumption, latency distribution, error rate
• Traces: Every stage a single request goes through and its duration
• Logs: Input/output at each stage, error stacks, audit information

# Instrument Agent calls with OpenTelemetry
from opentelemetry import trace
from opentelemetry.instrumentation.openai import OpenAIInstrumentor

# Automatically instrument OpenAI API calls
OpenAIInstrumentor().instrument()

tracer = trace.get_tracer(__name__)

@tracer.start_as_current_span("agent_task")
def run_agent_task(task: str):
    # span automatically records duration and context
    with tracer.start_as_current_span("llm_call") as span:
        span.set_attribute("task", task)
        result = agent.run(task)
        span.set_attribute("tokens_used", result.usage.total_tokens)
        return result

Pre-Deployment Checklist

Before pushing an Agent to production, complete the following checks:

☐ SLO Definition
  ├─ TTFT (Time to First Token) target: _____ ms
  ├─ TPOT (Time per Output Token) target: _____ ms
  └─ Availability target: _____%

☐ Cost Control
  ├─ Per-call budget cap: $_____
  ├─ Daily token consumption cap: _____ tokens
  └─ Alert thresholds configured

☐ Security Protection
  ├─ Input security check enabled
  ├─ Output content review enabled
  ├─ Agent behavior circuit breaker configured
  └─ Security monitoring alerts configured

☐ Disaster Recovery Plan
  ├─ Model degradation path defined
  ├─ Critical path fallback logic verified
  └─ Failure recovery drill completed

☐ Evaluation Baseline
  ├─ End-to-end evaluation score: _____
  ├─ Component-level evaluation score: _____
  └─ Regression test pipeline integrated

☐ Observability
  ├─ OpenTelemetry integrated
  ├─ Key metrics Dashboard established
  └─ Alert rules configured and verified

Progressive Rollout Strategy

Don’t go all-in at once. Adopt a progressive strategy:

Phase 1: Internal Testing (1-2 weeks)
  └─ Team members use it, collect initial feedback

Phase 2: Small-Scale Canary (5% of users)
  └─ Compare evaluation metrics between old and new systems

Phase 3: Expanded Rollout (25% → 50% → 100%)
  └─ Stay at each stage for 3-5 days to observe metrics

Phase 4: Full Rollout
  └─ Maintain monitoring, establish a continuous optimization loop

Production Operations Best Practices

Evaluation Baseline Management:

• Set the current production version as the baseline; any new version must surpass the baseline
• Periodically (weekly) retest both baseline and candidate versions with the latest data
• Integrate baseline checks into the deployment pipeline; versions that don’t meet the standard are automatically blocked

Layered Degradation Strategy:

1. Primary model unavailable → Switch to backup model
2. Backup model also unavailable → Use cached common responses
3. Cache miss → Return preset degradation response templates

Cost Governance:

• Analyze token consumption by model, by user, by task type dimensions
• Identify abnormal cost spikes and set alerts
• Regular review: are there unnecessary long contexts, redundant System Prompts

Model Distillation: Teaching Small Models Domain Expertise

Why Distillation Matters

Large models (GPT-4, Claude, Qwen-72B) deliver excellent quality but come with high inference costs and latency. For production systems handling thousands of requests per minute, the token cost can become prohibitive. Model distillation offers a practical solution: use a large model’s outputs as training data to teach a smaller model (7B-14B) to replicate the same behavior at a fraction of the cost.

Teacher Model (GPT-4, 175B params)
  │
  ├── Generate high-quality responses for domain tasks
  │
  ▼
Training Data (input → teacher_output pairs)
  │
  ├── Fine-tune student model
  │
  ▼
Student Model (7B-14B params)
  │
  ├── Same quality, 10-50x lower cost
  └── 5-10x lower latency

Distillation Pipeline

Step 1: Define the Task Scope

Distillation works best when the task is well-defined and repetitive. Identify the specific domains where you need the small model to perform:

# Example: Customer support intent classification
task_definitions = [
    {
        "name": "intent_classification",
        "input_schema": {"user_message": "string", "context": "string"},
        "output_schema": {"intent": "string", "confidence": "float", "reasoning": "string"},
    },
    {
        "name": "response_generation",
        "input_schema": {"intent": "string", "knowledge": "string", "tone": "string"},
        "output_schema": {"response": "string", "sources": ["string"]},
    },
]

Step 2: Generate Training Data with Teacher Model

Use the large model to generate high-quality examples for your domain:

from openai import OpenAI

teacher = OpenAI(api_key="...")  # GPT-4 or similar
student = OpenAI(base_url="http://localhost:8000/v1")  # Your small model

def generate_training_examples(task_def: dict, n_examples: int = 1000) -> list:
    examples = []
    for i in range(n_examples):
        # Generate diverse inputs
        input_prompt = f"Generate a realistic input for task '{task_def['name']}'. Vary the complexity and edge cases."
        input_resp = teacher.chat.completions.create(
            model="gpt-4",
            messages=[{"role": "user", "content": input_prompt}],
        )
        user_input = input_resp.choices[0].message.content

        # Generate teacher output
        teacher_resp = teacher.chat.completions.create(
            model="gpt-4",
            messages=[
                {"role": "system", "content": f"You are an expert at {task_def['name']}. Follow this output schema: {task_def['output_schema']}"},
                {"role": "user", "content": user_input},
            ],
        )
        teacher_output = teacher_resp.choices[0].message.content

        examples.append({"input": user_input, "output": teacher_output})

    return examples

training_data = generate_training_examples(task_definitions[0], n_examples=2000)

Step 3: Fine-tune the Student Model

Use LoRA or full fine-tuning to train the small model on the teacher’s outputs:

# Using Hugging Face Transformers + PEFT for LoRA fine-tuning
from transformers import AutoModelForCausalLM, AutoTokenizer
from peft import LoraConfig, get_peft_model

model_name = "meta-llama/Llama-2-7b-hf"
model = AutoModelForCausalLM.from_pretrained(model_name)
tokenizer = AutoTokenizer.from_pretrained(model_name)

# Configure LoRA for efficient fine-tuning
lora_config = LoraConfig(
    r=16,  # LoRA rank
    lora_alpha=32,
    target_modules=["q_proj", "v_proj"],
    lora_dropout=0.05,
    bias="none",
    task_type="CAUSAL_LM",
)

model = get_peft_model(model, lora_config)
model.print_trainable_parameters()
# Output: trainable params: 4,194,304 || all params: 6,742,609,920 || trainable%: 0.0622

# Train on the distillation data
# ... (standard training loop)

Step 4: Evaluate and Iterate

Compare the student model’s outputs against the teacher’s on a held-out test set:

def evaluate_student_vs_teacher(test_set: list, teacher_client, student_client) -> dict:
    results = {"exact_match": 0, "semantic_similarity": 0, "total": len(test_set)}

    for example in test_set:
        student_resp = student_client.chat.completions.create(
            model="student-7b",
            messages=[{"role": "user", "content": example["input"]}],
        )
        student_output = student_resp.choices[0].message.content
        teacher_output = example["output"]

        # Exact match check
        if student_output.strip() == teacher_output.strip():
            results["exact_match"] += 1

        # Semantic similarity (using embeddings)
        # ... (compute cosine similarity between outputs)

    results["exact_match_rate"] = results["exact_match"] / results["total"]
    return results

# Target: >85% semantic similarity with teacher

When to Distill

Production Best Practices: Monitoring, Canary Releases, A/B Testing

Observability Stack

Production Agent systems need comprehensive observability. Set up the following monitoring layers:

1. Application-Level Metrics

import time
from prometheus_client import Counter, Histogram, Gauge

# Request metrics
request_counter = Counter('agent_requests_total', 'Total requests', ['model', 'intent', 'status'])
request_latency = Histogram('agent_request_duration_seconds', 'Request latency', ['model', 'intent'])
active_sessions = Gauge('agent_active_sessions', 'Active conversation sessions')

# Token usage metrics
token_usage = Counter('agent_tokens_total', 'Token usage', ['model', 'type'])  # type: input/output

# Quality metrics
hallucination_rate = Gauge('agent_hallucination_rate', 'Estimated hallucination rate')
user_satisfaction = Histogram('agent_user_satisfaction', 'User satisfaction score', buckets=[1, 2, 3, 4, 5])

def track_request(model: str, intent: str, status: str, latency: float, tokens_in: int, tokens_out: int):
    request_counter.labels(model=model, intent=intent, status=status).inc()
    request_latency.labels(model=model, intent=intent).observe(latency)
    token_usage.labels(model=model, type='input').inc(tokens_in)
    token_usage.labels(model=model, type='output').inc(tokens_out)

2. Distributed Tracing

Use OpenTelemetry to trace requests across your Agent pipeline:

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.exporter.otlp.proto.grpc.trace_exporter import OTLPSpanExporter

trace.set_tracer_provider(TracerProvider())
tracer = trace.get_tracer(__name__)

def process_user_request(user_input: str):
    with tracer.start_as_current_span("process_request") as span:
        span.set_attribute("user.input_length", len(user_input))

        with tracer.start_as_current_span("retrieve_context") as retrieve_span:
            context = retrieve_relevant_docs(user_input)
            retrieve_span.set_attribute("docs.retrieved", len(context))

        with tracer.start_as_current_span("llm_generate") as llm_span:
            llm_span.set_attribute("model", "gpt-4")
            response = call_llm(user_input, context)
            llm_span.set_attribute("tokens.used", response.usage.total_tokens)

        return response
